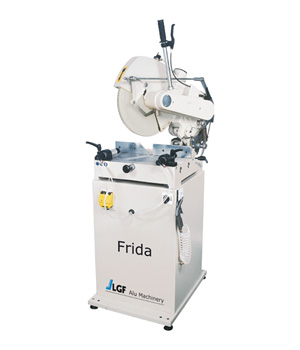

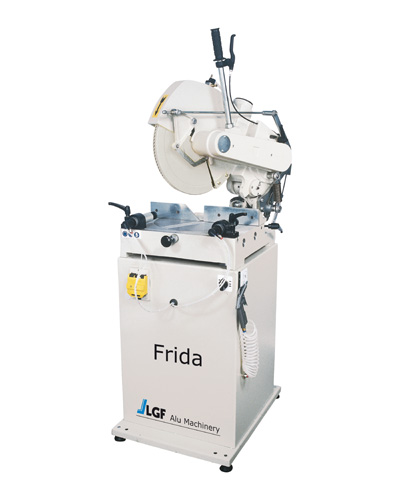

FRIDA
|
| SINGLE HEAD CUTTING OFF MACHINE WITH MANUAL DOWN STROKING OF THE BLADE |
| Technical Data |
Manual down stroking of the head by means of ergonomic safety lever
Blade protection cover with automatic closing by means of lever
Head tilting from 90° to 45° on the left hand side with mechanical locking system
Head rotation on its own axis at -45° / 45° with mechanical locking system
Manual locking system of working bench at any intermediate degree
Rotating working bench
Sawblade Max. Ø 400 mm
Sawblade shaft Ø 30 mm
2,2 Kw (3 HP) 3 phase motor - 2800 r.p.m.
Overall dimensions 83X56X144 cm
Weight 138 Kg
|
| Standard Equipment |
Nr 2 horizontal pneumatic clamps
Automatic lubrication by means of nebulizer
Suction hood connection
Air gun
Service spanners
|
| Optionals |
Single phase motor
|
|
|
|
|
|
