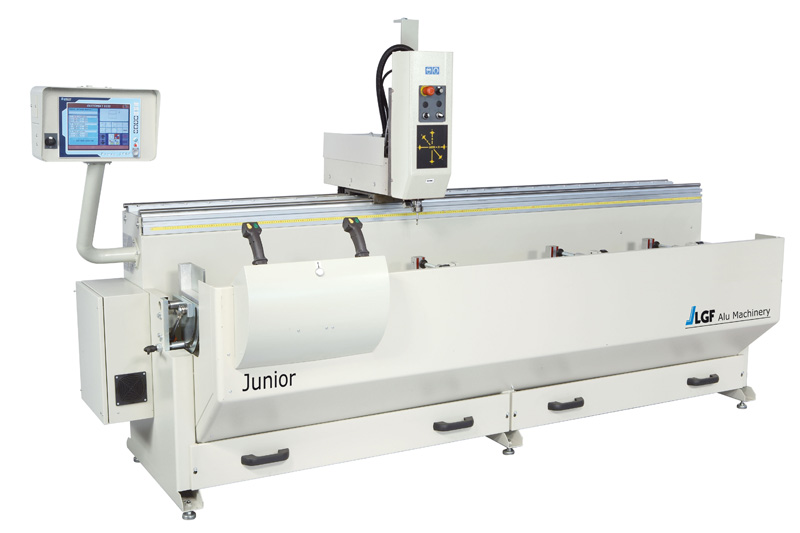

JUNIOR SA
|
| SEMI AUTOMATIC MACHINING CENTRE |
| Technical Data |
Particularly suitable for aluminium, light alloy, PVC and stainless steel profiles
Machine equipped with CNC control unit c/w 10" color monitor and touch screen system
LGF software interface, intuitive and user friendly, based on pre-setted macros
Possibility to append different programs in one
USB port to store/upload programs archives
Console equipped with double Joy-stick for desplacement of the controlled axis "X" - "Y" and "Z" (descend)
Pneumatic displacement of "Z" axis, with rising of the head (end of working cycle) by means of button on the console
Rotating bench and pneumatic displacement, by means of selector at 0°/90°/-90°
Possibility to perform operations at any intermediate degrees with manual positioning and mechanical end stop on goniometer
Possibility to adjust spindle revolutions according to the type of material used
Possibility to vary the working speed during the program execution
1,5 Kw (2 HP) 3 phase motor
Working capacity with router bit L= 40mm 2500x250x210
Overall dimensions: cm 315x105x173 mm
Weight: 690 kos
|
| Standard Equipment |
Nr. 4 pneumatic clamps with manual traversing
Automatic lubrication by means of nebulizer
USB flash drive
Spindle type ER 25 with manual changing of the tools
Nr. 1 router bit Ø 8 mm
Profile end stop
Air filter
Air gun
Service spanners
|
| Optionals |
Quick release electro-spindle with cone type ISO 30 - 4 Kw (5,5 HP)
Additional profile end stop (R)
Brushless motors
2,2 kw (3 HP) 3 phase motor
|
|
|
|
|
|
