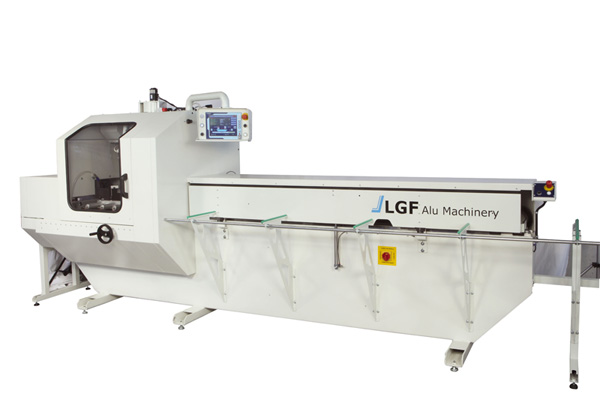

MIZAR
|
| CNC CUTTING CENTRE |
| Technical Data |
Electro welded solid steel construction
Machine totally enclosed
Axis movement on linear guides and recirculating ballscrew
CNC unit with colored "touch screen" system and dedicated software
USB port to upload cutting lists
Cnc controlled feeding of the bar
Full automatic and CNC controlled sawing group able to process cuttings from -45° to +45° including all intermediate degrees
Controlled and "intelligent" clamping system separately actuated
Bar backward controlled movement during cutting procedure to avoid saw blade's flashes while reentering
Controlled trolley to remove cut pieces
Exit bench for cut pieces
Pneumatic system to evacuate cut pieces
Unlimited cutting lenght
2,2 Kw (3 HP) 3 phase motors - 2800 r.p.m.
Working pressure 7 bar
Overall dimensions 460x131x202 cm
Weight 1800 kg
|
| Standard Equipment |
T.C.T. saw blade diam. 550mm
Service spanners
|
| Optionals |
Additional support bench for long bars
Ethernet connection
Bar code printer
|
|
|
|
|
|
